Príslušenstvo

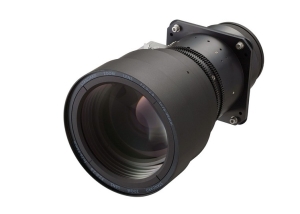

K projektorom EIKI je možné vybrať objektív požadovaných parametrov. Celá škála zahŕňa štandardné objektívy na bežné premietanie,  výkonné teleobjektívy umožňujúce projekciu z niekoľkých desiatok metrov a širokouhlé objektívy s krátkou ohniskovou vzdialenosťou. Ovládanie objektívov je zväčša motorické. Objektívy EIKI sa vyznačujú vysokou kvalitou a presnosťou. Výmena objektívu je nenáročná a rýchla. Všetky objektívy EIKI sú vyrábané v Japonsku.

1.8″ Models
Code
Description
Focal Length
Applied model
Weight  (kg)

AH-21202
LNS-W02Z
1.4-1.83:1 short throw zoom lens
f = 52,2 – 67,9 mm
HDT2000
HDT1000
XT6
XT5
X800
2,2

AH-32022 (*on axis)
LNS-W03E
0.8:1 short throw fixed lens
f = 30 mm
HDT2000
HDT1000
XT6
XT5
X800
3,1

AH-32401 (*on axis)
LNS-W04
1.54-2.03:1 short throw zoom lens
f = 58 – 76 mm
HDT2000
HDT1000
XT6
XT5
X800
2,8

AH-32601 (*on axis)
LNS-W06
1.2-1.5:1 short throw zoom lens
f = 45 – 57 mm
HDT2000
HDT1000
XT6
XT5
X800
3,0

AH-21023
LNS-M01E
3.5-4.6:1 semi long throw zoom lens
f = 124,5 – 161,8 mm

XT6
XT5
X800
1,9

AH-22221
LNS-M02
3.5-4.5:1 semi long throw zoom lens
f = 125 – 162 mm
HDT2000
HDT1000

3,2

AH-21032
LNS-T01
6.9:1  long throw fixed lens
f = 253 mm
HDT2000

XT6
XT5
X800
3,8

AH-21092
LNS-T02E
4.4-6.13:1 long throw zoom lens
f = 158 – 221 mm
HDT2000
HDT1000
XT6
XT5
X800
3,1

AH-32581
LNS-T03
6.17-9.0:1 long throw zoom lens
f = 224 – 325 mm
HDT2000
HDT1000
XT6
XT5
X800
7,3

AH-21102
LNS-S02Z
2.0-2.6:1 standard zoom lens
f = 75,7 – 97,5 mm

XT6
XT5
X800
1,9

AH-22051
LNS-S03
2.6-3.5:1  standard zoom lens
f = 97 – 131 mm
HDT2000
HDT1000
XT6
XT5
X800
3,7

AH-21401
LNS-S04
2.0-2.6:1 standard zoom lens
f = 76 – 98 mm
HDT2000
HDT1000

2,6

1.3″ Models
Code
Description
Focal Length
Appriled model
Weight(kg)

AH-23122
LNS-W31A
1.3-1.8:1 motorised short throw zoom lens
f [...]

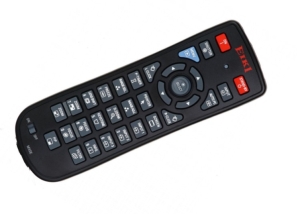

V prípade straty alebo na uľahčenie ovládania projektora je možné na vyžiadanie dodať náhradný bezdrôtový alebo káblový ovládač.

Part Number
Remote Controls, and Wired Remote Cords

6 451 037 299
Infrared & Wired

LC-HDT2000 / LC-HDT1000

6 450 626 128
Infrared & Wired w/ LASER POINTER and MOUSE CONTROL

LC–HDT10

6 450 929 854
Infrared & Wired

LC-XT5A, LC-XT5

9 450 880 750
Infrared & Wired

LC-XT4U, LC-XT9

9 450 477 899
Infrared & Wired w/ LASER POINTER and MOUSE CONTROL

LC-UXT3, LC-XT3, LC-XT2, LC-UXT1

6 450 981 111
Infrared & Wired

LC-X800A, LC-X800, LC-X8

6 450 681 608
Radio Freq. & Wired Remote Projector and Mouse Control w/ Laser Pointer

LC-SX6, LC-SX6A, LC-X6, LC-X6A

9 450 477 875
Infrared & Wired w/ Laser Pointer and Mouse Control

LC-X5, LC-X5L, LC-X4A, LC-X4LA, LC-X4, LC-X4L, LC-SX4LA

6 450 953 293
Infrared & Wired

LC-W5, LC-X7

9 450 864 255
Infrared & Wired w/ Laser Pointer

LC-W4

6 450 864 261
Infrared & Wired w/ Laser Pointer

LC-W3

6 451 038 463
Infrared & Wired

LC-WUL100, LC-WUL100L

6 451 030 207
Infrared & Wired

LC-WXL200, LC-WXL200L

6 450 975 837
Infrared & Wired

LC-XL200, LC-XL100, LC-X85

6 451 050 816
Infrared & Wired

LC-HDT700

6 450 953 484
Infrared & Wired w/ Laser Pointer

LC-X80

9 450 711 177
Infrared & Wired w/ Laser Pointer

LC-X71, LC-71L, LC-X70, LC-X60

6 450 615 030
Infrared & Wired w/ Laser Pointer

LC-X50M, LC-X50

6 450 999 048
Infrared & Wired w/Laser Pointer

LC-WGC500, LC-WGC500A, LC-WGC500LA

6 450 981 791
Infrared & Wired w/Laser Pointer

LC-XGC500, LC-XGC500L

6 450 892 721
Infrared & Wired w/Laser Pointer

LC-XG400, LC-XG400L, LC-XG250, LC-XG250L, LC-XG300, LC-XG300L

9 450 648 787
Infrared only w/Laser Pointer

LC-XG210, LC-XG110, LC-XG200, LC-XG100

9 450 520 861
Infrared & Wired w/Laser Pointer

LC-X1100, LC-X986

6 450 481 895
Infrared & Wired w/Laser Pointer

LC-X1000, LC-X985

6 450 423 529
Infrared & Wired w/ Laser Pointer

LC-XC1

6 450 617 935
Infrared only w/Laser Pointer

LC-XE10, LC-SE10

6 450 248 436
Infrared only

LC-7000UE

6 [...]

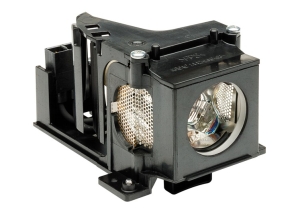

Výbojka v projektore patrí medzi najviac namáhané časti. Životnosť výbojky sa pohybuje rádovo v tisíckach hodín a je definovaná zvlášť pre jednotlivé modely. Na dosiahnutie predpísanej životnosti výbojky je nutné používať projektor v súlade s návodom. Venujte preto zvýšenú pozornosť kapitolám pojednávajúcim o prevádzke a údržbe projektora.  Osobitnú pozornosť venujte bezpečnostným pokynom súvisiacich s prevádzkou projektora a zvlášť s výmenou výbojky!

Zoznam náhradných výbojok

Vysvetlivky – Typ: M.H. = Metal Halide, DC = Direct Current, UHP = Ultra High Performance, SID = Superior Intensity Discharge

Part Number
Projector
Description
Lamp Mfg’r No.
Watt/Typ

6 103 509 051
LC-HDT2000
(4) used in each projector

380W / NSHA

6 103 515 939
LC-HDT1000
(2) used in each projector

380W / NSHA

6 103 051 130
LC-HDT10
(4) used in each projector
POA-LMP72
250W / UHP

6 103 506 814
EIP-HDT30
(2) used in each projector

330W / VIDI™

6 103 435 336
EIP-HDT20
(2) used in each projector
POA-LMP130
330W / VIDI™

AH-55001
EIP-WX5000 / L
(2) used in each projector

280W / UHP

6 103 370 262
LC-W5
(2) used in each projector
POA-LMP104
330W / NSHA

6 103 422 626
LC-WGC500 / A
(2) used in each projector
POA-LMP125
330W / NSHA

6 103 093 802
LC-W4
(2) used in each projector
POA-LMP73
250W / UHP

6 103 252 957
LC-W3

POA-LMP98
300W / NSH

6 103 570 464
LC-HDT700

380W / NSHA

6 103 469 607
LC-WUL100 / L

POA-LMP136
330W / NSHA

6 103 469 607
LC-WXL200 / L

POA-LMP136
330W / NSHA

6 103 339 740
LC-WB42NA, LC-WB42N,

POA-LMP111
275W / NSH

LC-WB40N

23040037
LC-WIP3000, LC-WSP3000

245W / UHP

23040044
LC-WNB3000N

240W / UHP

13080021
EIP-WSS3100

280W / UHP

6 103 490 847
LC-WS250

230W / NSHA

6 103 527 949
LC-WB200

POA-LMP148
245W / UHP

6 103 432 069
LC-WB100

POA-LMP131
225W / UHP

6 103 000 862
LC-UXT3
(4) used in each projector
POA-LMP49
250W / UHP

6 102 924 [...]

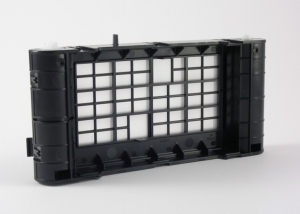

Pre správne fungovanie projektora je nutná pravidelná výmena filtračných jednotiek a filtrov. Interval výmeny filtrov je automaticky sledovaný projektorom. Bližšie informácie v súvislosti s výmenou filtrov nájdete v návode na použitie.

Part Number
Description
Model No.

AH-38321
Smoke Resistant Unit (Pleated Smoke Resistant Filter + Filter Base)
LC-HDT2000

AH-38323
Smoke Resistant Filter (Pleated – for above AH-38321)

6 103 546 902
Replacement Filter (Honeycomb 2nd Layer + Pleated 3rd Layer)

6 103 359 830
Replacement Filter Cartridge (Auto Rolling Filter)
LC-HDT1000,

LC-X800A, LC-X800

LC-W5, LC-X8, LC-X7

AH-38561
Smoke Resistant Unit (Pleated Smoke Resistant Filter + Filter Base)
LC-XT6

AH-38323
Smoke Resistant Filter (Pleated – for above AH-38561)

T1FTX0069
Replacement Filter (Pleated)

6 103 341 057
Replacement Filter (Pleated)
LC-XT5A, LC-XT5

9 103 014 815
Replacement Filter Net (Foam)
LC-XT3, LC-XT4,

LC-XT9

9 103 151 589
Replacement Filter (Pleated)
LC-X6A, LC-X6,

LC-SX6A, LC-SX6

9 102 923 163
Replacement Filter Net – a (Foam – Bottom)
LC-W4, LC-X4, LC-X5

9 102 923 187
Replacement Filter Net – c (Foam -Side)

6 103 507 811
Replacement Filter Cartridge (Auto Rolling Filter)
EIP-HDT30

6 103 429 571
Replacement Filter Cartridge (Auto Rolling Filter)
LC-HDT700,

LC-XGC500 / L,

LC-WGC500 / L

6 103 343 747
Replacement Filter Cartridge (Auto Rolling Filter)
LC-X85, LC-X80,

EIP-HDT20,

EIP-SXG20

9 103 307 184
Replacement Filter (Base – Foam)
LC-XGxxx series,

LC-SXG400 / L

9NK3243101400
Replacement Filter (Foam)
EIP-WX5000 / L

6 103 469 034
Replacement Filter Cartridge (Auto Rolling Filter)
LC-WUL100 / A,

LC-WXL200 / A,

LC-XL200 / A,

LC-XL100/A

9 103 038 774
Replacement Filter Net – a (Side-Back)
LC-W3 / LC-X70 / LC-X71 LC-X1000 series

9 103 038 781
Replacement Filter Net – b (Side-Front)

6 103 339 290
Replacement Filter Net (Back)
WB4xxx, XB4xxx series

6 103 383 682
Replacement Filter Net (Side)

6 103 537 009
Replacement Filter Box (Bottom)
LC-WB200/W,

6 103 581 484
Replacement Filter Box (Side)
LC-XB250/W

6 103 517 834
Replacement Filter Assy (Cartridge [...]

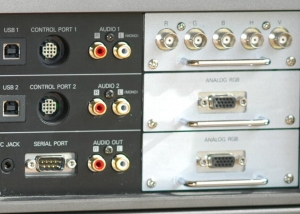

Vstupné a kontrolné moduly
K vybraným projektorom EIKI je možné dodať moduly s vstupnými a riadiacimi portmi.

Part Number
OPTIONAL INPUT and CONTROL MODULES
Software

LC-HDT2000 & LC-HDT1000
Update No.(s)

AH-72223A
DVI-D / D-sub 15 ( Sound: D-sub 15 pin )
None

AH-72225
5 BNC / S-Video ( CV/Y, Pb/Cb, Pr/Cr ) ( Sound: S-Video )
None

AH-72217A
HD / SD-SDI ( BNC x 3 ) ( Sound: N/A, Control: N/A) Max Resolution = HD 1080p
None

AH-72722
Dual Link SDI Board ( BNC x 4 )( Sound: N/A, Control: N/A) 2K Resolution OK
None

EIP-HDT30

AH-72223A
DVI-D / D-sub 15 ( Sound: D-sub 15 pin )
HD:OK. SD:NG

AH-72225
5 BNC / S-Video ( CV/Y, Pb/Cb, Pr/Cr ) ( Sound: S-Video )

AH-72217A
HD / SD-SDI ( BNC x 3 ) ( Sound: N/A, Control: N/A) Max Resolution = HD 1080p

EIP-SXG20

AH-72003
DVI Supports HDCP ( Sound: RCA x 2, Control: Min DIN 8-Pin)
10

AH-72004
DVI / D-sub 15 ( Sound: D-sub 15 pin )
None

AH-72015
5 BNC ( Y, Pr, Pb ) ( Sound: RCA x 2, Control: N/A)
10

AH-72031
VGA ( D-Sub15 VGA ) ( Sound: RCA x 2, Control: Min DIN 8-Pin)
10

AH-72162
HD & SD-SDI; DUAL-SDI ( BNC x 3 ) ( Sound: N/A, Control: N/A)
HD-SDI: OK SD-SDI: NO

AH-72147
Network Module ( Sound: N/A, Control: RJ-45, D-Sub 9 Pin)
10

AH-72511
5 BNC / S-Video ( CV/Y, Pb/Cb, Pr/Cr ) ( Sound: S-Video w/o Composite )
10

AH-72181
Warp & Blending ( DVI – D-Sub 9 pin IN/OUT)
10

LC-W5

AH-72003
DVI Supports HDCP ( Sound: RCA x 2, Control: Min DIN 8-Pin)
9

AH-72004
DVI / D-sub 15 ( Sound: D-sub 15 pin )
9

AH-72015
5 BNC ( Y, Pr, Pb ) ( Sound: RCA x 2, Control: N/A)
9

AH-72031
VGA ( D-Sub15 [...]

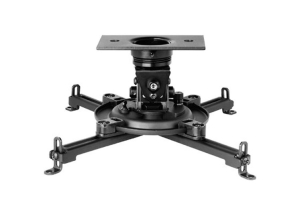

Významnou zložkou príslušenstva projektorov EIKI sú stropné držiaky. Precízne vyrobené držiaky sa vyznačujú modulárnym dizajnom, jemným doladením polohy a nosnosťou až 50 kg. Pre špeciálne použitie sú k dispozícii pevné rámy umožňujúce zavesenie projektora na rôzne konštrukcie.
